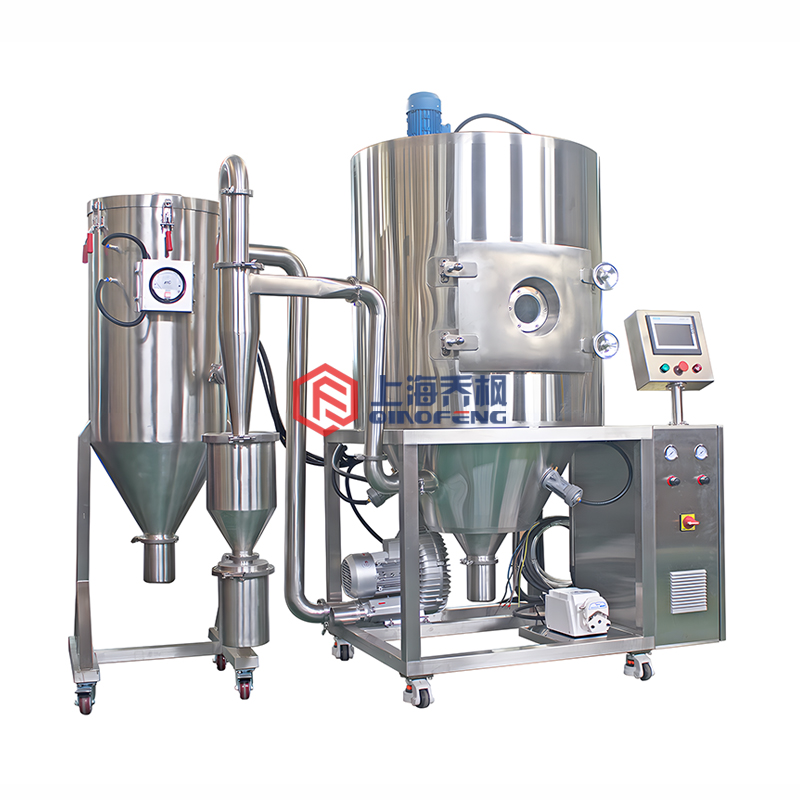

| Device name: | Centrifugal two fluid spray dryer |
| Equipment type: | qfn down to - 5 - |
| Equipment specifications: | 5Kg/h (support customized) |
| Test machine: | Support test making experiment |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
1. product features:
2. equipment advantages:
3. two kinds of nebulization comparison:
| category | centrifugal atomization | Two fluid atomization |
| Final powder morphology | The particle size is more uniform | Uniformity of particle size without centrifugal atomization |
| For certain materials, such as resin | Unsuited | Fit |
| Adaptability range of material powder | Centrifugal atomization < two fluid atomization | |
| Wall impingement | Easy to hit the wall | No wall |
| Pagoda | Easy product | Non product |
| Adjustment range of particle size | Narrower (25-70 micron) | The adjustment range of particle size is larger (1-120 microns) |
| Is it convenient to insert and maintain | Disassembly, cleaning and maintenance are more complicated and require professional maintenance. | Disassembly, cleaning and maintenance are very simple, without professional maintenance. |
| Diversity | Single | Multiple choice space |
| category | QFN and nzi1ver2018 - 1A | QFN-CX-NZY8VER2018-1A | QFN-CX-NZY1VER2018-1A |
| particle size | (25-100 microns) | (1-10 microns) | (1-10 microns) |
| Tower height | Long type | Wide type | Long type |
| particle size distribution | QFN - CX - nzy8ver2018 - 1 > qfn - CX - nzy1ver2018 - 1 > QFN and nzi1ver2018 - 1A
 | ||
| system | number | parts | brand | Model | Number | Remarks |
|
					electric  | One | Electronic control system of QFN-LE series atomizing dryer | Maple Maple | / | 1 sets | See device parameters |
| Two | Switching Mode Power Supply | The Ming and Wei | you - 100 - 24 | The 1 | / | |
| Three | Air switch | chint | DZ47 series | Some | / | |
| Four | Small relay | chint | JZX-22F (D) /2Z | Some | / | |
| JZX-22F (D) /4Z | ||||||
| Five | Solid state relay | Meg | / | 1 sets | / | |
| Six | Frequency converter | / | / | 1 sets | See device parameters | |
| Seven | Digital controller | Taida | DTC-1000 series | Some | See device parameters | |
| Eight | Power switch |
 |
 | The 1 |
 | |
| Nine | Indicator light | chint | nd16 - 22ds / 4 | The 1 | Red, 220VAC | |
| Ten | sensor | Famous Shanghai | wzp - 241 | 3 roots | / | |
| Eleven | Terminal terminal | / | / | Some | / | |
| Twelve | Guide | / | / | Some | / | |
| Thirteen | Groove | / | / | Some | Bottom hole | |
| Fourteen | wire | Sails | / | / | / | |
| Fifteen | Electric box | Maple Maple | Customized | The 1 | sus304 | |
|
					transport  | One | Peristaltic pump | Hui Yu | yz15 13a | 1 sets | / |
| Two | Feed pipe | / |
 | / | / | |
|
					Fog  | One | Atomization system | Maple Maple | Customized | 1 sets | See device parameters |
| Two | Pressure gauge | AirTAC | 0-1MPA |
 | / | |
| Three | Circulating pump | / | / | One | / | |
| Three | Air compressor | Dolphin | 0-0.8MPA | 1 sets | / | |
|
					dry  | One | Dry pagoda | Maple Maple | / | The 1 | See device parameters |
| Two | Hot air distributor and volute (matching of atomization system) | Maple Maple | Customized | The 1 | Three hundred and four | |
|
					yield  | One | cyclone | Maple Maple | Customized | One | Three hundred and four |
| Two | Dust collector (optional) | Maple Maple | Customized | / | See device parameters | |
| Three | Collecting bucket | Maple Maple | Customized | Three | Three hundred and four | |
| Four | Feed valve | Warm letter | φ63 / 108mm | Three | Health level 304 | |
| Hot air circulation system | One | Fan | / | / | 1 sets | See device parameters |
| Two | heater | Maple Maple | Customized |
 | See device parameters |
| Centrifugal two fluid spray dryer | qfn down to - 5 - | qfn - down - 10 | qfn down. - 15 - |
| Water evaporation | 5Kg/h | 10Kg/h | 15Kg/h |
| Minimum feed volume | 80ml | 120ml | 150ml |
| The diameter of the drying chamber (mm) | ¢800 | ¢1000 | ¢1200 |
| Height of dry tower (mm) | ¢800 | ¢1200 | ¢1500 |
| Atomization structure |
					Atomization system (QFN-E-NZI1VER2018-1A) (compressed air: 1-5bar) | ||
| Electronic control system | Qiao Feng centrifugal two fluid atomization system (QFN-LE-ES-VER2018-1A) | ||
| Maximum inlet temperature (centigrade) | Two hundred and sixty | ||
| Standard of main electrical accessories (including PLC, analog module, touch screen) (optional) |
					Control module (standard), delta control module, SIEMENS control module, Germany. | ||
| Standard of electrical auxiliary accessories selection (including Contactors) (optional) | CHINT (standard): Deli, Schneider. | ||
| Contact with the material (optional) | ?sus304 (標準) □sus316 □其他 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ | ||
| Exhaust reutilization, energy saving over 30% (optional) | Assembly (standard) / assembly | ||
| Atomizing nozzle (using diamond coating) | (SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond | ||
| Equipment warranty | 1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years. | ||
| Heater capacity | 15kw | 25kw | 30kw |
| Air blower [power (kw), air volume (m /min)] | nothing | [0.25,9.5] | [0.25,9.5] |
| Air blower [power (kw), air volume (m /h)] | [1.5,250] | [2.2,300] | [2.2,1410] |
| Compressor [power (kw), air volume (L /min)] | [0.58,108] | [1.5,250] | [1.5,250] |
| Electric power (installed capacity) | 18kw | 30kw | 40kw |
| Thermal insulation material | 50mm glass fiber insulated cotton | 50mm glass fiber insulated cotton | 50mm glass fiber insulated cotton |
| Pulse bag dust collector (optional) | 4 | 9 | 20 |
| Shape size (mm) (L x W x H) | 1600×1400×1800 | 2200×1600×2200 | 2600×1200×2500 |
| Installation weight (Reference) | 300kg | 600kg | 1000kg |
| Power supply | 380V/-3: it can be customized according to different national standards. |
	Note 1: water evaporation at inlet temperature of 250 C.
2: for more evaporation equipment, please inquire online or call our company.
Tel: 17317246351
Mailbox: sales@qfn17.com
URL: http://m.iishop.net.cn
Address: Shanghai fengxian canal north road no. 1185
