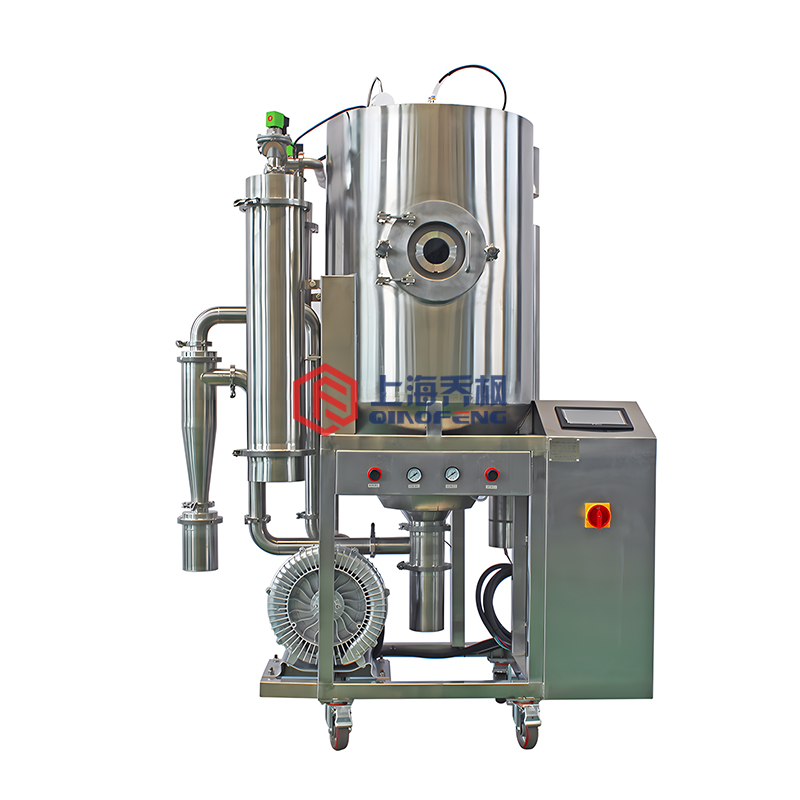

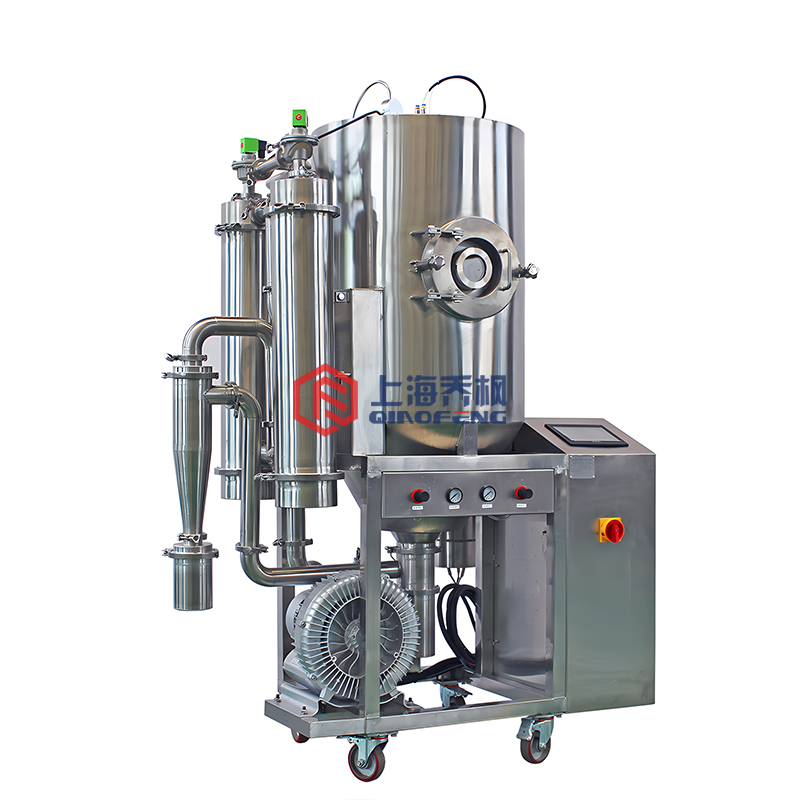

| Device Name: | Ultrafine powder spray dryer |
| Equipment type: | QFN-CX-3 (customized) |
| Equipment specifications: | 3Kg/h (support customization) |
| Test machine: | Support the test machine to do the experiment |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Applicable scenarios: | Scientific research, chemical industry, food, pesticide, medicine and biological industry in Universities |
| Is it guaranteed? | Three-year National Warranty |
| Consultation telephone: | 17317246351 |
1. Equipment characteristics
2. Equipment superiority




	2-D Curve of QFN-PWCX-NZY8VER2018-075A Atomization System
Line reading
1 indicates the spray volume of a nozzle (l/hr).
The red line represents the compressed air PA (MPA), the blue line represents the liquid pressure, the PW (MPA), and the green line represents the QA/QW steam-water ratio.
3. Measurement of 2-D Curves of 4. QFN-PWCX-NZY8VER2018-075A Atomization System by Toplephic Method
Line reading
1 indicates the spray volume of a nozzle (l/hr).
The red line represents the compressed air PA (MPA), the blue line represents the liquid pressure, the PW (MPA), and the green line represents the QA/QW steam-water ratio.
4. The number inside represents the average SAUTER particle size (micron) measured by Toplephine.
The number inside represents the average SAUTER particle size (micron) measured by Toplephine.
QFN-CX-NZY8VER2018-075A atomization system:



For example, if the final average dry powder size is about 3 microns, the known condition is that the solid content of the feed solution is 10%.



	Then the average wet droplet size required is 3/0.1=30 micron. The liquid intake is about 8 L/hr, the compressed air needs 0.2 MPA, and the intersection point is about 30 micron.
For droplets of other sizes, first determine the treatment capacity, make a vertical axis, find the approximate size of the droplets, and then find the intersection point to find the compressed air pressure.
Note: According to the influence parameters of density and viscosity of materials on droplets, the final average diameter of droplets should be 30 [-27,33]

5.Device parameters
| Ultrafine powder spray dryer | QFN -CX-3 | QFN -CX-Five | QFN -CX-Ten |
| Water evaporation | 3Kg/h | 5Kg/h | 10Kg/h |
| Minimum feed rate | 80ml | 80ml | 120ml |
| Drying chamber diameter (mm) | ¢600 | ¢800 | ¢1200 |
| Height of drying tower (mm) | ¢800 | ¢800 | ¢1500 |
| Atomization structure | Single-hole misaligned atomization structure (QFN-CX-NZY8VER2018-1A) | ||
| Electric control system | QFN-CX-ES-VER2018-1A | ||
| Maximum intake temperature (Celsius) | Two hundred and sixty | ||
| Standards for main electronic control accessories (including PLC, analog module, touch screen) (optional) |
					Dimension Control Module (Standard)Delta Control Module_German Siemens Control Module | ||
| Selection Standard for Electronic Control Auxiliary Parts (Contactors, etc.) (Optional) | Zhengtai (Standard) Delicious Schneider Others________ | ||
| Contact with material (optional) | "9745; SUS304 (26631;" 20934; 160;"160;" 160;"160;" SUS316 "160;" 1600;"D"20854;"20182;uses | ||
| Tail gas reuse, energy saving more than 30% (optional) | Non-assembly (Standard) Assembly | ||
| Atomizing nozzle (whether diamond coating is used) | SUS304 (Standard) SUS316 (Standard) SiC (Standard) Diamond | ||
| Equipment warranty | _1 year (standard, above need to charge a certain maintenance fee)2 years_3 years | ||
| Heater capacity | 6Kw | 15Kw | 25Kw |
| Blower [power (kw), air volume (m/min)] | nothing | nothing | [0.25,9.5] |
| Induced draft fan [power (kw), air volume (m/h)] | [1.5,250] | [2.2,300] | [2.2,300] |
| Compressor [Power (kw), Air Volume (L/min)] | [0.58,108] | [1.5,250] | [1.5,250] |
| Electricity (installed capacity) | 8Kw | 30Kw | 40Kw |
| Thermal insulation material | 50mm Glass Fiber Thermal Insulation Cotton | 50mm Glass Fiber Thermal Insulation Cotton | 50mm Glass Fiber Thermal Insulation Cotton |
| _Pulse bag filter (optional) | Polytetrafluoro Film Coating Material | ||
| 4 only | 4 only | 9 Only | |
|
					Profile Size (mm) (L X W X H) | 1600×1400×1800 | 2200×1600×2200 | 2600×1200×2500 |
| Installation Weight (Reference) | 200Kg | 450Kg | 1000Kg |
| Power Supply | 380V/-3(Relevant voltage can be customized according to different national standards) |
	Note 1: Water evaporation to air temperature 250 C,.
2: If you need more evaporation equipment, please make an online inquiry or call our company.
