Home > Product > Granulating/pelleting machine

Small wet unregular machine QFN GHL - 10

Device name:	Small wet mixing granulator
Equipment type:	qfn - ane - 10
Output:	15kg/batch to 200kg/batch (custom made)
Test machine:	Support test making experiment
Scope of application:	The powders and adhesives are fully mixed into a wetting material in a cylindrical container by bottom mixing slurry, and then cut into uniform wet particles by a side-mounted high-speed pulverizer. Short granulation time, high efficiency and energy saving. When the main drugs and excipients differ greatly, they can still achieve uniform combination without stratification.
Application scenario:	Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed?	National three year warranty
Telephone:	17317246351

Detail

1.Use description:
The powders and adhesives are fully mixed into a wetting material in a cylindrical container by bottom mixing slurry, and then cut into uniform wet particles by a side-mounted high-speed pulverizer. Short granulation time, high efficiency and energy saving. When the main drugs and excipients differ greatly, they can still achieve uniform combination without stratification.
Two.Working principle:
The horizontal cylinder structure is adopted and the structure is reasonable. The inflatable sealing drive shaft can be switched to water when cleaning. The granulation of sulphide granulation is nearly spherical with good fluidity. Compared with the traditional process, the adhesive is reduced by 25%, the drying time is shortened, the dry-wet mixing granulation is completed in the same sealed container, and the process is reduced, which conforms to the GMP specification. The whole operation has strict safety protection measures.

Three, product characteristics:

This machine adopts the structure of the bedroom cylinder, and the structure is reasonable.

The inflatable sealing drive shaft can be switched to water when cleaning.

Fluidization granulation, spheroid is nearly spherical and fluidity is good.

Compared with the traditional process, the adhesive is reduced by 25% and the drying time is shortened.

Each batch is mixed for 2 minutes, granulation for 1-4 minutes, the efficiency is 4-5 times higher than the traditional process.

In the same closed container, dry mixing wet mixing granulation process is reduced, which is in line with the GMP specification.

The whole operation has strict safety protection measures. 8, mixing and cutting are controlled by frequency conversion to make the granulation more uniform.

Four, equipment type and parameters:

Model	volume	yield	Mixing speed	Hybrid power	Cutting speed	Cutting power
ghl - 50	507	15kg/batch	200 / 400rpm	5.5kw	1500 / 3000rpm	2.2kw
ghl - 150	150l	50kg/batch	180/270rpm	15kw	1500 / 3000rpm	5.5kw
ghl - 200	200L	80kg/batch	180/270rpm	15kw	1500 / 3000rpm	5.5kw
ghl - 250	250l	100 kg / batch	180/270rpm	15kw	1500 / 3000rpm	5.5kw
ghl - 300	300L	130kg/batch	140/220rpm	18.5kw	1500 / 3000rpm	7.5kw
ghl - 400	400L	200kg / batch	106/155rpm	22kw	1500 / 3000rpm	7.5kw

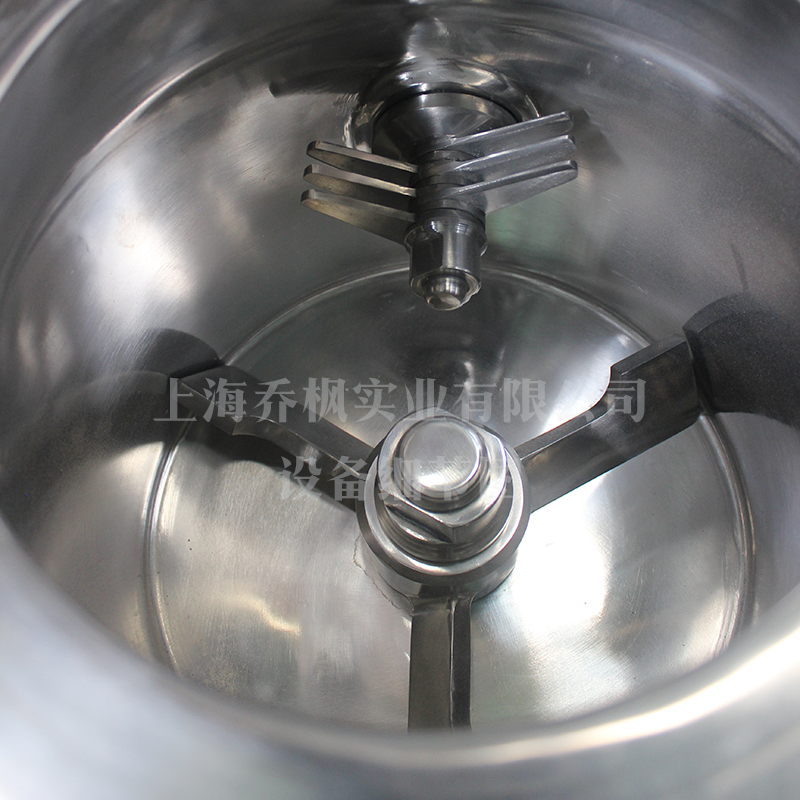

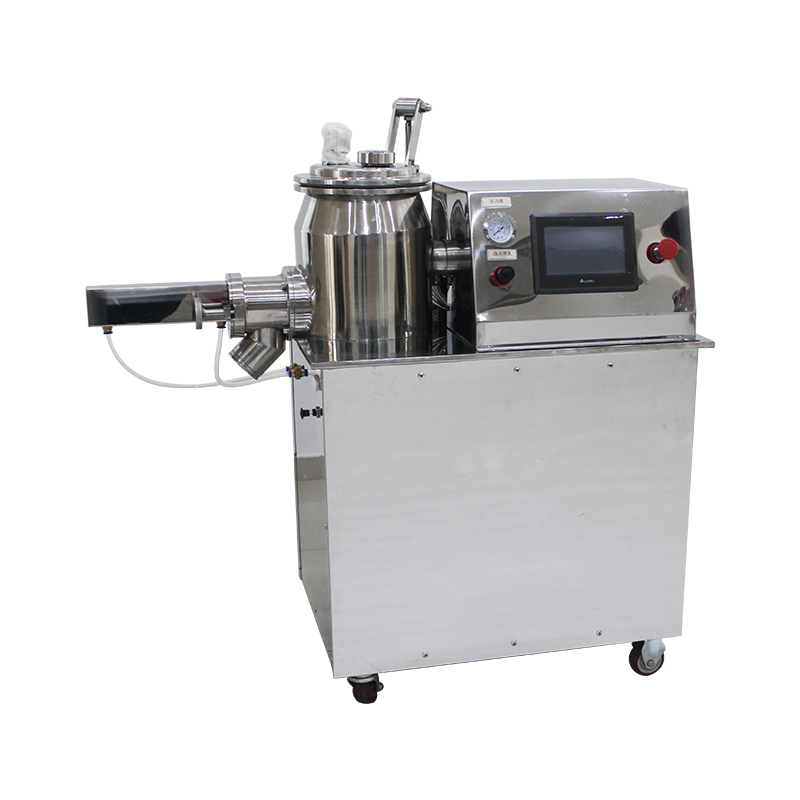

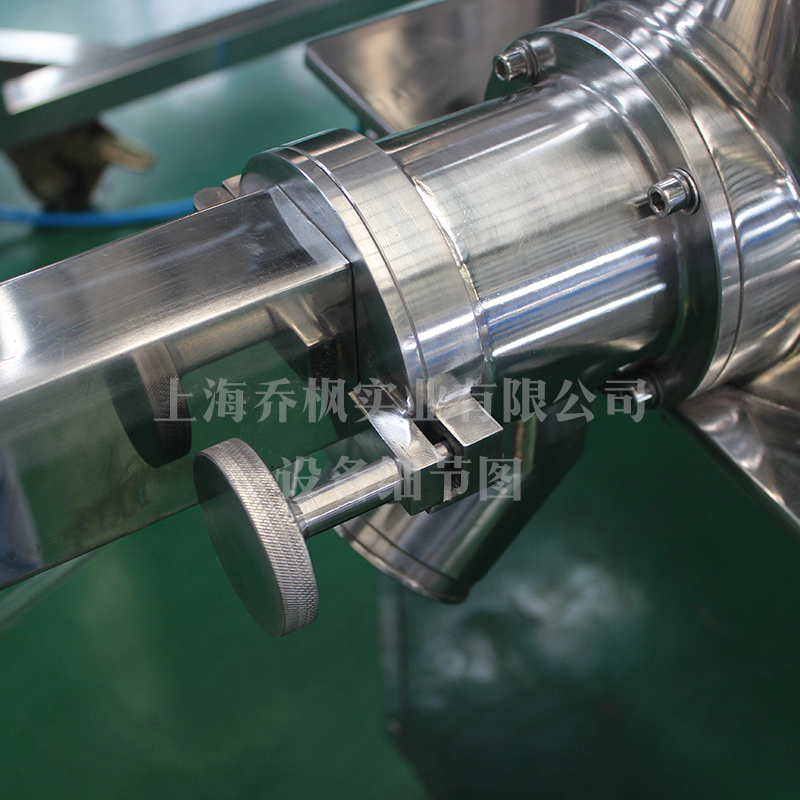

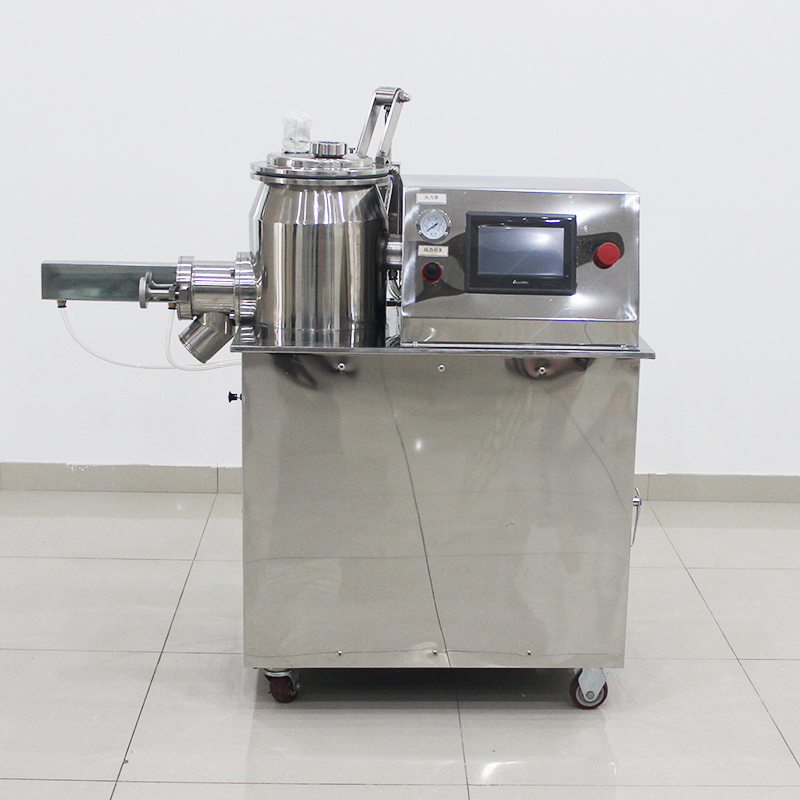

Photo analysis:
