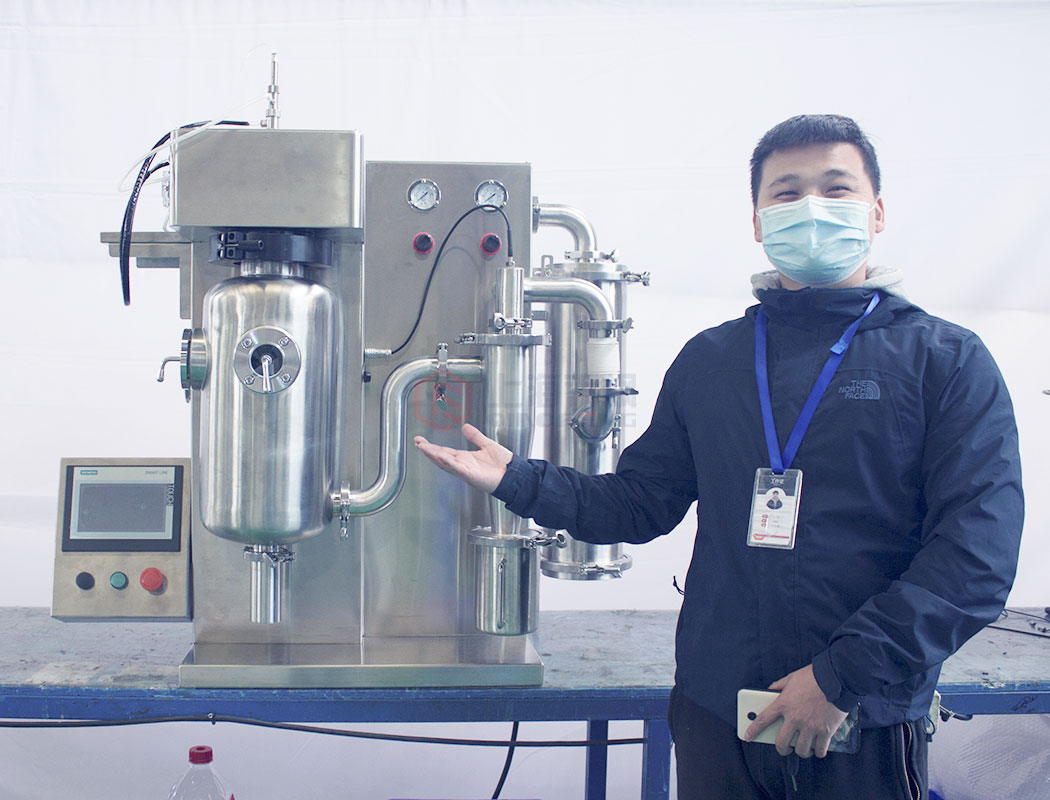

| Device Name: | Small desktop spray dryer for laboratory use |
| Equipment type: | QFN-9000Z (customized) |
| Equipment specifications: | 1500ml/h (customized support) |
| Test machine: | Support the test machine to do the experiment |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Applicable scenarios: | Scientific research, chemical industry, food, pesticide, medicine and biological industry in Universities |
| Is it guaranteed? | Three-year National Warranty |
| Contact number: | 17317246351 |
1、 Product Description:
The laboratory small desktop spray dryer is mainly suitable for the production of micro particle powder in the laboratories of universities, research institutes and food pharmaceutical and chemical enterprises, and is widely applicable to all solutions, such as emulsion and suspension.
It is suitable for drying heat sensitive materials, such as biological products, biological pesticides, enzyme preparations, etc. Because the ejected materials are only subjected to high temperature and instantaneous heating when they are sprayed into mist, the active ingredients of these active materials remain unchanged after drying.
Multiple applications:
Beverages, spices and pigments, milk, egg products, plant and vegetable extracts, pharmaceutical synthetic thermosensitive plastics, polymers and resins, aromatics, blood products, ceramic and superconductor biochemical products, dye soaps and detergents, food, adhesives, oxides, bone powder and tooth powder, etc.
2、 Main features:
1. The concentric coaxial atomizer designed by Qiao Feng can be customized;
2. The 16 ? silicone tube with wear resistance and corrosion resistance is selected to meet the transportation requirements of most heat sensitive materials;
3. The conveying device is built-in peristaltic pump, which can accurately control the speed and make the unidirectional rotation safer;
4. It is equipped with high borosilicate glass drying components with good light transmittance and acid and alkali resistance;
5. The clamp of fixed components is made of high-quality aluminum alloy, which is firm and durable without dead angle;
6. Cyclone separator and bag type dust collector can be switched to use, which can screen and collect materials with different particle sizes;
7. The oil-free air compressor imported from Taiwan has the advantages of low pollution, low noise and sustainable operation;
8. Adopting high precision PID temperature control technology, the temperature control precision range is 1 ℃, and the electric heating source is stable and more environmentally friendly.
9. Intelligent human-computer interaction interface, simple operation, support Chinese and English switching
10. After drying, the particle size of the dry powder is uniform, and more than 95% of the dry powder is in the same particle size range.
11. For sticky materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will automatically clear, and the frequency of the needle can be adjusted automatically.
12. Stainless steel drying chamber can be used for tower wall purging.
13. Accept customization (e.g. complete with imported accessories, sandblasting appearance, design model according to laboratory environment, etc.)
3、 Equipment parameters:
|
Water evaporation |
1000mL-2000 mL/h |
|
Minimum feed rate |
50ml |
|
Delivery pump |
4-way rotor pump (feed pipe: imported silicone peristaltic tube) (6-way rotor pump can be selected) |
|
Atomization mode |
Refined two fluid atomizing nozzle (one gas and one liquid) (two fluid atomizing nozzle for refined plastics is optional) |
|
Nozzle diameter |
(spraying system) can be equipped with 07 / 1.0 / 1.5 / 2.0 / 2.2 mm, and the standard configuration is 1.0 mm (silicon carbide can be selected, and the wear resistance is about 10 times that of stainless steel) |
|
Average drying time |
1.0～1.5S |
|
Temperature setting range |
30-300 ℃ PID automatic control; (temperature can be set) |
|
Temperature regulation accuracy |
Inlet temperature ± 1 ℃ |
|
Fan |
Single phase low noise fan, fan flow rate; 3.2 m3 / min, wind pressure; 19 kPa 9 (Taiwan imported fan, powerful silent function) |
|
Temperature sensor |
PT-100 thermocouple |
|
Spray regulation range |
0-0.8 MPa (0.2 MPa recommended) |
|
Spray pressure intake volume |
106l / min; air displacement: 36L / min; input power: 580W |
|
Air compressor for spray |
Matching |
|
Electric heater power |
3.5KW |
|
Rated voltage |
220V/50HZ |
|
Air inlet treatment |
Fiber cotton filter |
|
Flow range adjustment of feed pump |
0-26ml/min |
|
Heat dissipation of electric box |
Brushless DC motor fan heat |
|
Air connection for spray |
Air tube with outer diameter of 6 mm |
|
Function protection |
If the fan is not started, the heater can not be started, the air compressor can not be started, and the peristaltic pump cannot be started |
|
Dimensions |
1090(W)X600(D)X890(H)mm |
|
Equipment control mode |
touch screen |
|
Material / weight |
304/105KG |
Note: for equipment with larger evaporation capacity, please inquire online or call
